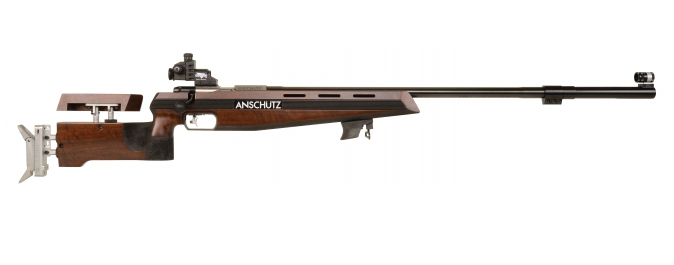

54.30 in stock 1907 Walnut

The new ANSCH TZ target small bore barreled action 54.30 is the evolution of the legendary ANSCH TZ Match 54 action. The new 54.30 is based on ideas an requirements established in modern target shooting are backed-up with decades of testing and proven components.

The small bore Match 54.30 action distinguishes itself by following items

Basis for the new rifle is the well known and reliable ANSCH TZ Match 54 action.

The loading port was moved 30mm rewards and was reduced in size by 18%, resulting in a more rigid receiver.

The closer location of the loading port allows for less movement when in position and an overall improvment in shooter ergonomics.

To accomodate the closer location of the loading port, the bolt and the firing pin were reduced in length by 30mm.

The weight of the firing pin was also reduced, thus resulting in a velocity increase of the firing pin and a shorter lock-time.

The overall accuracy has been improved by a newly designed target chamber.

Unlike match actions in the past, the new Match 54.30 features a threaded receiver and barrel connection.

This change removes stresses in the chamber area and further increases accuracy.

The new Match 54.30 can be installed into all available stocks which fit with the ANSCH TZ round match actions such as the 1907 or 1913.

Like other ANSCH TZ products, the Match 54.30 features a maintenance - friendly and long lasting overall construction.

Stock
The anatomically perfect stock is equipped with a ANSCH TZ cheek piece and butt plate adjustment which offers extraordinary adjustment possibilities. The adjustments are easy to find and fast to reproduce. If demanded, the carrier can take also another ANSCH TZ hook butt plate such as the hook butt plate 2213-8700, as well. as the rubber butt plate 4709 A. Samples see accessories and available models.

Delivered with Hand stop 4751, Tube, screw driver, allen key, manual with test target. Sight sets see accessories.

Item No.: 014059

Technical Data
Name:	54.30 in stock 1907 Walnut
Item No.:	014059
Total length (cm)	111 - 116
Weight approx. (kg):	4.8
Trigger
Name:	5018
Item No.:	001205
Type:	Two stage trigger
Adjustment of the trigger shoe (mm):	23.5
min. Trigger weight (g):	60
max. Trigger weight (g):	490
Trigger weight, adjusted (g):	125
Cant of the trigger shoe:	11
Barreled Action
Name:	54.30
Item No.:	013867
Barrel:	ANSCH TZ Precision barrel (heavy)
Caliber:	.22LR
Version:	Right
Rifling (cm):	66
Rifling Length (cm):	420
Number of discharges (cm):	8
Barrel length (cm):	66
Length of aiming (cm):	86 - 100
Length of Barrelled action (cm):	80
Stock
Name:	1907 Nuss
Item No.:	001283
Material:	Walnut
Color:	Dark
Butt plate:	Aluminium-butt plate 2213-8700
min. Length of pull (cm):	32.5
max. Length of pull (cm):	38
Total length (cm):	73
