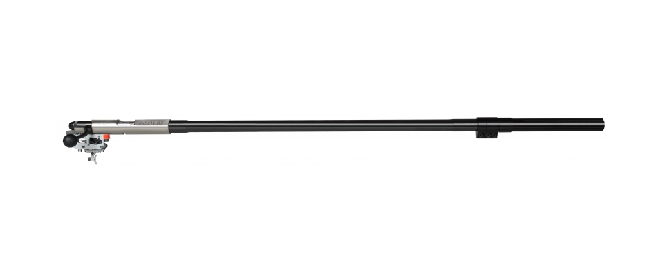

Barrelled Action 54.30

The small bore Match 54.30 action distinguishes itself by following items:

Basis for the new rifle is the well known and reliable ANSCH TZ Match 54 action.

The loading port was moved 30mm rewards and was reduced in size by 18%, resulting in a more rigid receiver.

The closer location of the loading port allows for less movement when in position and an overall improvment in shooter ergonomics.

To accomodate the closer location of the loading port, the bolt and the firing pin were reduced in length by 30mm.

The weight of the firing pin was also reduced, thus resulting in a velocity increase of the firing pin and a shorter lock-time.

The overall accuracy has been improved by a newly designed target chamber.

Unlike match actions in the past, the new Match 54.30 features a threaded receiver and barrel connection.

This change removes stresses in the chamber area and further increases accuracy.

The new Match 54.30 can be installed into all available stocks which fit with the ANSCH TZ round match actions such as the 1907 or 1913.

Like other ANSCH TZ products, the Match 54.30 features a maintenance - friendly and long lasting overall construction.

Caliber: .22 l.r.
Rifling: 660 mm
Lenght of Twist: 420 mm
Number of Groves: 8
Barrel surface: Bluing
Barrel length: 660 mm
Safety: yes
Signal pin: yes
Version: right
Length of barreled action: 800 mm

Technical Data:

Item No. 013867
